Charts and Graphs in Python

There are various charts and Graphs in Python for data visualization. Seaborn and Matplotlib are two popular Python libraries for graphing in Python. Before plotting in Python, one needs to import the libraries. Since we have to use the data frame for this article and we are also interested in plotting some useful graphs, we will import the following libraries:

Libraries Required for Charts and Graphs in Python

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
import seaborn as sns
from scipy import stats

In this article, we will use iris data to visualize different features. For this purpose, let us import the library and iris data set as follows:

from vega_datasets import data
iris = data.iris()
iris data set

Drawing Boxplot in Python

sns.boxplot( y = iris['sepalLength'], data=iris)
Charts and Graphs in Python Box plot

The above boxplot is for all observations in “sepalLength” variable. Suppose you are interested in visualizing the sepalLength for each iris species. For this purpose, you need to use the hue argument. For example:

sns.boxplot(x = iris['species'], y = iris['sepalLength'], data=iris, hue=iris['species'])

The above code will produce the following graph.

Charts and graphs in Python Box plot for each species

Draw Histogram in Python

One can draw histograms easily in Python.

Charts and Graphs in Python, Histogram

The following example draws histograms on a single plot. Three variables from a normal distribution are generated and plotted in different colours.

x1 = np.random.randn(10000) * 0.5
x2 = np.random.randn(10000) * 1.5 + 3
x3 = np.random.randn(10000)

plt.hist([x1, x2, x3], bins = 150,
         label = ['Mean=0, SD=0.5', 'Mean=3, SD=1.5', 'SDN'],
         color = ["b", "green", "magenta"]
Histograms in Python

Draw Pie Charts in Python

One can easily draw Pie charts in Python by using pie() function. The following is simple and self-explanatory code to draw a Pie chart in Python. The Python code below draw the relative sales from four different regions, namely (region A, B, C, and D).

groups = ['A', 'B', 'C', 'D']
sales = [50, 63, 29, 45]
plt.pie(sales, labels = groups, autopct='%.1f%%')
Charts and Graphs in Python: Pie chart

Clustered/ Stacked bar Graph in Python

One can easily draw bar graphs, clustered, and stacked bar plots in Python. Since there are three varieties of iris flowers and there are four features (variables) “sepalLength”, “petalLength”, “sepalWidth”, and “petalWidth”. We can plot the clustered or stacked bar plot on Python.

Groups = ['setosa', 'versicolor', 'virginica']
x = np.arange(3), iris['sepalLength'].groupby(iris.species).mean(), width=.2), iris['petalLength'].groupby(iris.species).mean(), width=.2), iris['sepalWidth'].groupby(iris.species).mean(), width=.2), iris['petalWidth'].groupby(iris.species).mean(), width=.2)

plt.xticks (x, Groups)
plt.ylabel('Average Sepal Length')
plt.legend(['Sepal Length', 'Petal Length', 'Sepal Width', 'Petal Width'])

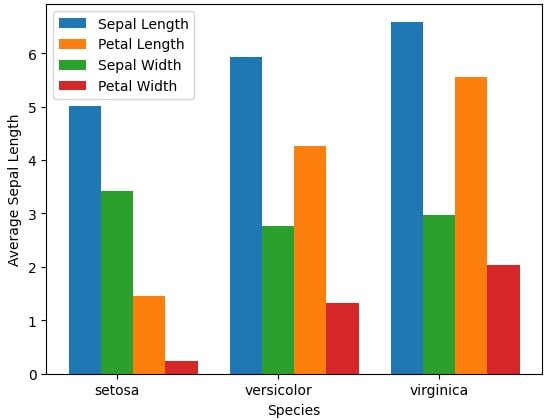

Charts and Graphs in Python: Clustered Bar Plot

Since a small quantity is added or subtracted in the x-axis, we get the clustered bar graph. We addition or subtraction of values in the x-axis is removed, we will get a stacked bar plot. The updated code for stacked bar plot is as given below:

Groups = ['setosa', 'versicolor', 'virginica']
x = np.arange(3), iris['sepalLength'].groupby(iris.species).mean(), width=.4), iris['petalLength'].groupby(iris.species).mean(), width=.4), iris['sepalWidth'].groupby(iris.species).mean(), width=.4), iris['petalWidth'].groupby(iris.species).mean(), width=.4)

plt.xticks (x, Groups)
plt.ylabel('Average Sepal Length')
plt.legend(['Sepal Length', 'Petal Length', 'Sepal Width', 'Petal Width'])
Charts and Graphs in Python: Stacked Bar Plot

Mean Plot or Barplot in Python

The barplot() function from the seaborn library can be used to draw the mean bar plots. For example,

sns.barplot(data=iris, x="species", y="sepalLength")
Barplot in Python

Note that one can compute the average values for each variety regarding their “sepalLength” by using gropuby() function. For example,


## Output
setosa        5.006
versicolor    5.936
virginica     6.588
Name: sepalLength, dtype: float64
